Models off CNC

  Mod CNC Axis DAC Channel off inp/out Channel off Pulse/Dir Channel off transducer ADC channel probe channel handwheell
NC-201М NC-201М 3+1 4 48/32 - 3 - 1 1
NC-202 NC-202 3+1 1 40/24 3 3 - - 1
 NC-210 NC-210/1 4+1 5 32/24 - 4 - 1 1
NC-210/2 4+1 5 64/48 - 4 - 1 1
NC-220/1 4+1 5 32/24 4 4 4 1 1
NC-220/2 4+1 5 64/48 4 4 4 1 1
NC-230/2 5+1 6 64/48 - 5 - 1 1
NC-230/3 5+1 6 96/72 - 5 - 1 1
NC-230/4 5+1 6 128/96 - 5 - 1 1
  NC-301 NC-301 4 4 32/8-   4   1
NC-301/1 4 4 64/32   4   1
NC-301/2 4 4 96/56   4   1
NC-302 4 1 16/4 4 4 4 1
NC-302/1 4 1 48/28 4 4 4 1
NC-302/2 4 1 80/52 4 4 4 1
NC-310  NC-310 (max) 16 16 80/52 16 16 8 4 2

Read more...

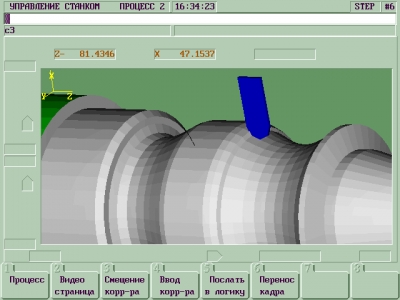

Functions pro



- 5 process

- Look Ahead

- Teach-in

- Gantry axis

- Master-slave axis control

- Rapid axis positioning

- 8 axis helical/linear interpolation

- Circular interpolation CW

- Circular interpolation CCW

- Helical interpolation

- Dwell at end of block

- Deceleration at end of block

- Selects the interpolation plane

- High level geometric programming

- Continuous operation with automatic speed reduction on corners

- Continuous operation without automatic speed reduction on corners

- Point to point operation

- Constant or variable pitch thread

- Offset disable on profile

- Offset enable on profile (tool left/right to part)

- Inch and metric programming

- Point measure with radius offset

- Measure of hole parameters

- Delta of a theoretical point without radius offset

- Programming of coordinates referred to machine zero (only valid within the block)

- Fixed cycle disable

- Drilling cycle

- Spot-facing cycle

- Deep drilling cycle

- Tapping cycle

- Reaming cycle

- Boring cycle

- Boring cycle with dwell

- Absolute programming

- Incremental programming

- Feed rate expressed as the inverse of the item execution time.

- Feed rate expressed in mm/min or in/min

- Feed rate in mm/rev

- Spindle speed in m/min

- Spindle speed in rev/min

- Polar and cylindrical transformations

- 3D compensations

- 5D transformation with tool orientation

- 4D transformation

- Concatenated transformations

- C-spline interpolation

- NURBS interpolation

- Oscillation functions

- Active reset

- Protection zones 2D/3D

- Quadrant error compensation

- Sag compensation, multidimensional

Read more...

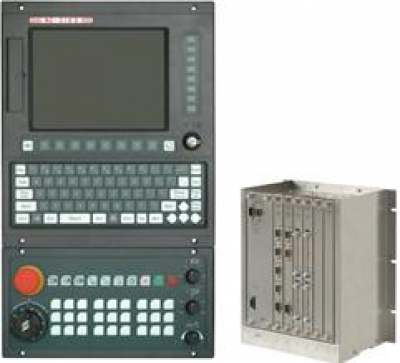

NC-310

NC-310 - general-purpose CNC, using for all machines and machines centre. The high-speed bus SSB (Serial Speed Bus) is applied in device to link between the intellectual bench board and the nonintellectual block for control of analogue and digital inputs/outputs. The included principle of an open architecture allows applying the CNC device to the complex objects of control.

Read more...
Subscribe to this RSS feed

CNC ALL

NC-201M

06-05-2014 Hits:3354 CNC Super User - avatar Super User

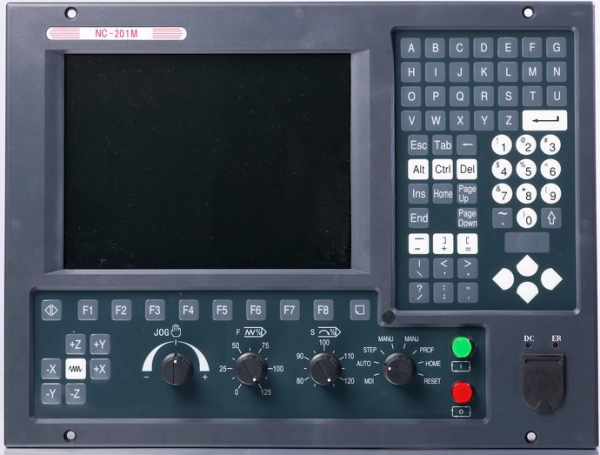

NC-201M

NC-201M – compact CNC with innovative functions for almost all technologies. This is ideal hardware and software platform for turn...

Read more

NC-310

30-04-2014 Hits:5769 CNC Super User - avatar Super User

NC-310

NC-310 - general-purpose CNC, using for all machines and machines centre. The high-speed bus SSB (Serial Speed Bus) is applied in ...
