Models off CNC
| Mod CNC | Axis | DAC | Channel off inp/out | Channel off Pulse/Dir | Channel off transducer | ADC | channel probe | channel handwheell | |
 |

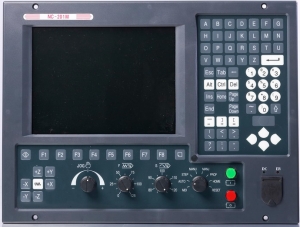

NC-201М | 3+1 | 4 | 48/32 | - | 3 | - | 1 | 1 |
 |
NC-202 | 3+1 | 1 | 40/24 | 3 | 3 | - | - | 1 |
 |
NC-210/1 | 4+1 | 5 | 32/24 | - | 4 | - | 1 | 1 |
| NC-210/2 | 4+1 | 5 | 64/48 | - | 4 | - | 1 | 1 | |
| NC-220/1 | 4+1 | 5 | 32/24 | 4 | 4 | 4 | 1 | 1 | |
| NC-220/2 | 4+1 | 5 | 64/48 | 4 | 4 | 4 | 1 | 1 | |
| NC-230/2 | 5+1 | 6 | 64/48 | - | 5 | - | 1 | 1 | |
| NC-230/3 | 5+1 | 6 | 96/72 | - | 5 | - | 1 | 1 | |
| NC-230/4 | 5+1 | 6 | 128/96 | - | 5 | - | 1 | 1 | |
 |
NC-301 | 4 | 4 | 32/8- | 4 | 1 | |||
| NC-301/1 | 4 | 4 | 64/32 | 4 | 1 | ||||
| NC-301/2 | 4 | 4 | 96/56 | 4 | 1 | ||||
| NC-302 | 4 | 1 | 16/4 | 4 | 4 | 4 | 1 | ||
| NC-302/1 | 4 | 1 | 48/28 | 4 | 4 | 4 | 1 | ||
| NC-302/2 | 4 | 1 | 80/52 | 4 | 4 | 4 | 1 | ||
 |

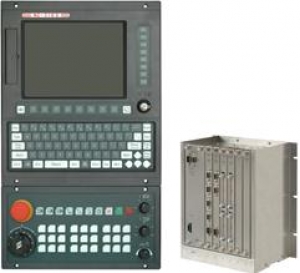

NC-310 (max) | 16 | 16 | 80/52 | 16 | 16 | 8 | 4 | 2 |
