NC-310

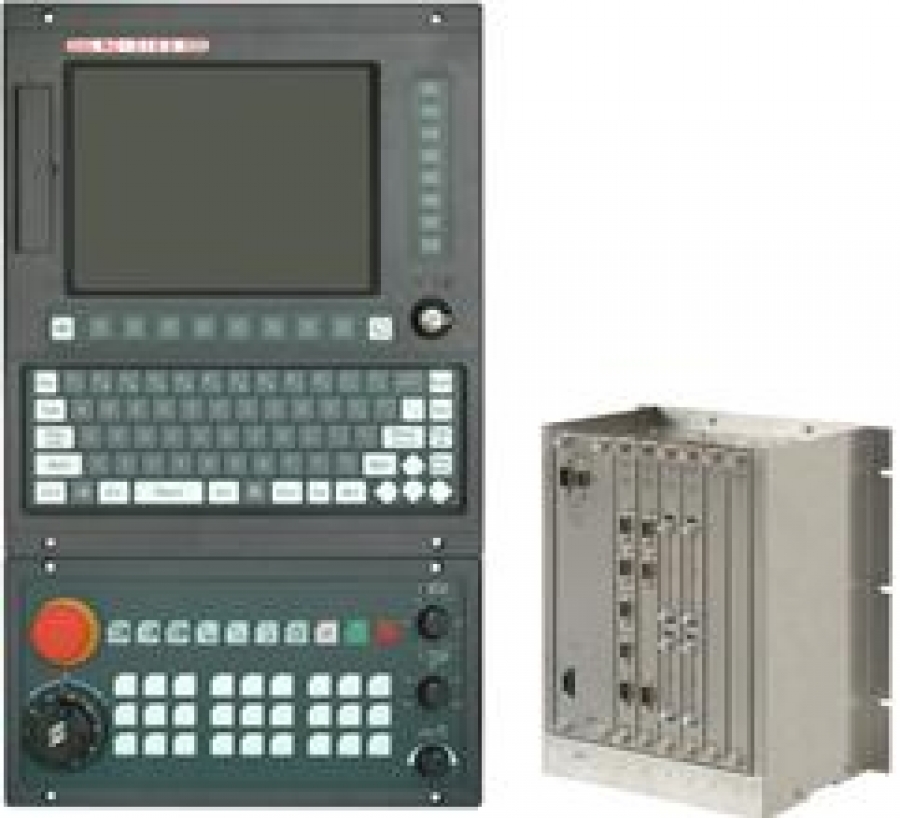

NC-310 - general-purpose CNC, using for all machines and machines centre. The high-speed bus SSB (Serial Speed Bus) is applied in device to link between the intellectual bench board and the nonintellectual block for control of analogue and digital inputs/outputs. The included principle of an open architecture allows applying the CNC device to the complex objects of control.
| - | DAC | : | 2-16 | channels |
| - | Feedback transmitters | : | 2-16 | channels |
| - | Inputs | : | 48-384 | channels |
| - | Outputs | : | 32-256 | channels |
| - | Probe | : | 1-4 | channels |
| - | USB | : | 2 | channels |
| - | LAN | : | 1 | channels |
| - | Feed corrector (F%) from 0 to 127% |
| - | Spindle corrector (S%) from 0 to 127% |
| - | Mode choosing knob |
| - | Manual feed corrector (JOG) |
| - | Buttons "START" and "STOP" |
| - | Emergency off switch (mushroom) |
| - | Handwheell |
| - | Free-programmed keys - 24 |
| - | Programmed multilevel virtual machine board based on functional keys F1-F8 and F11-F18 and screen menus, that possible to create any controls of machine's modules. |
| - | Input module with indication - 24 |
| - | Output relays module with indication - 24 DC 24V/3A, AC 110V/3A |
| - | Keyboard |
| - | Hermetical numeric-characters keyboard |
| - | Hermetic button keyboard of machine board |
| - | Control module | : | 222x262x163 | mm |
| - | Operator board | : | 395x340x125 | mm |
| - | Machine board | : | 175x340x73 | mm |
| - | Input module | : | 102x85x56 | mm |
| - | Output module | : | 270x85x56 | mm |
